[BK500EI] APC Back-UPS CS 500VA
APC Back-UPS, 300 Watts /500 VA, 230V

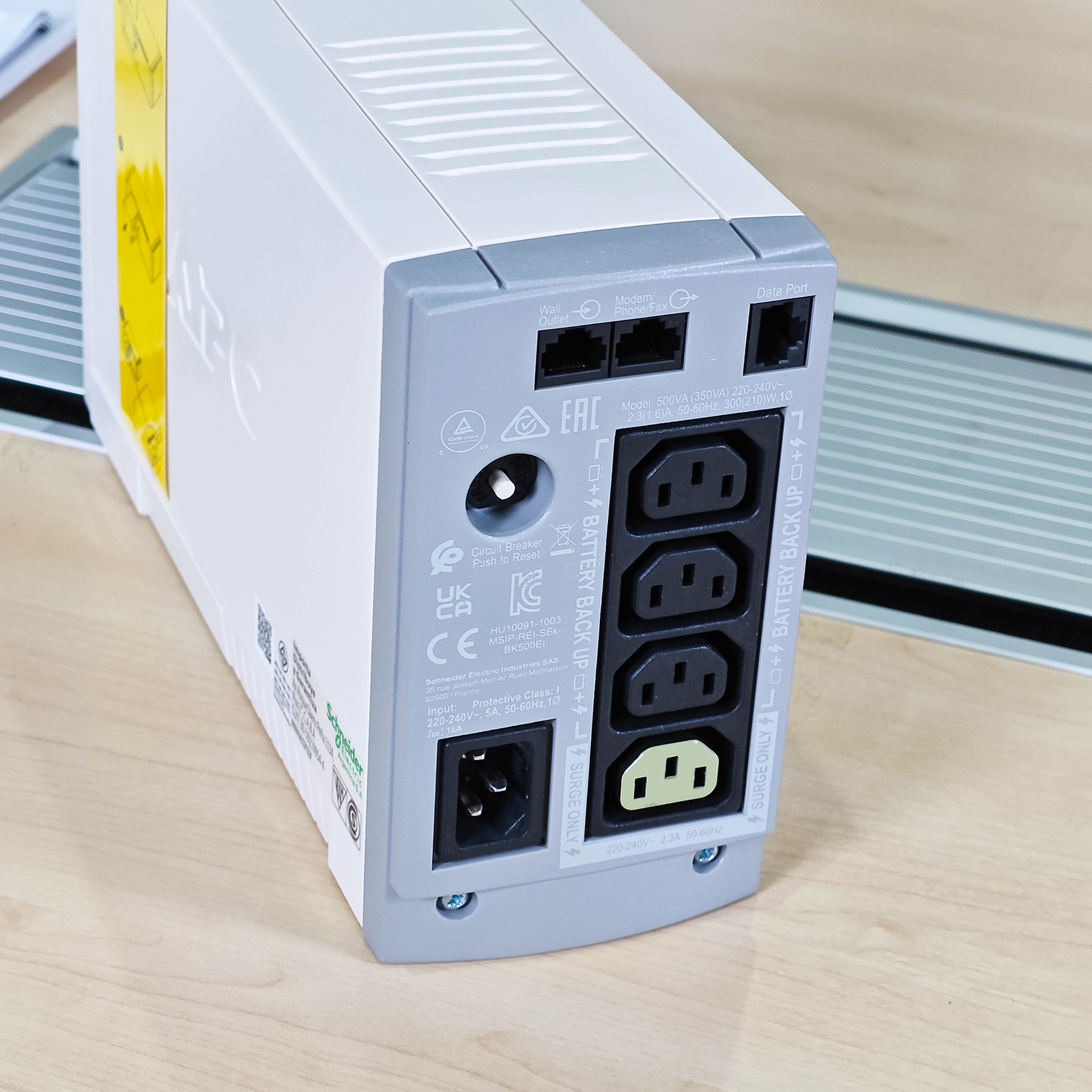

Output Connections : (2) IEC Jumpers (Battery Backup), (1) IEC 320 C13 (selector_surgetitle), (3) IEC 320 C13 (Battery Backup)
Topology : Standby
Max Configurable Power (Watts) : 300Watts / 500VA
Input Connections : IEC-320 C14 inlet
Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Interface Port(s) : USB

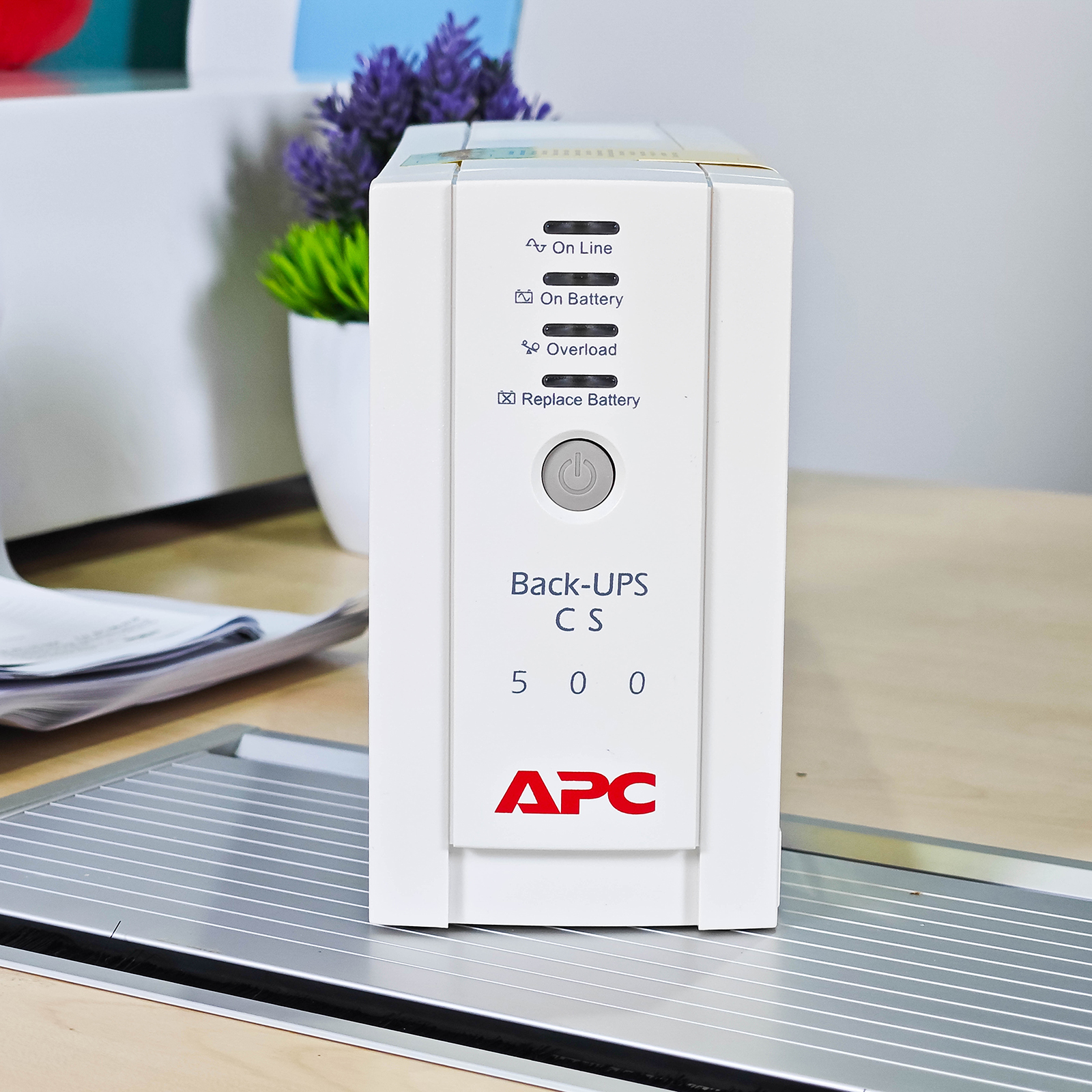

Control panel : LED status display with On Line : On Battery : Replace Battery and Overload indicators
Warranty : 2-Year On-Site Warranty by SCHNEIDER ELECTRIC CPCS (THAILAND)
Output Connections : (2) IEC Jumpers (Battery Backup), (1) IEC 320 C13 (selector_surgetitle), (3) IEC 320 C13 (Battery Backup)
Topology : Standby
Max Configurable Power (Watts) : 300Watts / 500VA
Input Connections : IEC-320 C14 inlet
Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Interface Port(s) : USB
Control panel : LED status display with On Line : On Battery : Replace Battery and Overload indicators
Warranty : 2-Year On-Site Warranty by SCHNEIDER ELECTRIC CPCS (THAILAND)
Product Detail
Output
Output power capacity : 300Watts / 500VA
Max Configurable Power (Watts) : 300Watts / 500VA
Nominal Output Voltage : 230V
Topology : Standby
Output Connections : (2) IEC Jumpers (Battery Backup), (1) IEC 320 C13 (selector_surgetitle), (3) IEC 320 C13 (Battery Backup)
Transfer Time : 4ms typical : 8ms maximum
Input
Nominal Input Voltage : 230V
Input frequency : 50/60 Hz +/- 5 Hz (manual switch)
Input Connections : IEC-320-C14 inlet
Input voltage range for main operations : 196 - 280V
Input voltage adjustable range for mains operation : 160 - 300V
Number of Power Cords : 1
Batteries & Runtime
Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time : 6 hour(s)
Expected Battery Life (years) : 4 - 6
RBC Quantity : 1
Battery Volt-Amp-Hour Capacity : 86
Communications & Management
Interface Port(s) : USB
Control panel : LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating : 300Joules
Data Line Protection : RJ-11 Modem/Fax/DSL protection (two wire single line)
Filtering : Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Color : Beige
Maximum Depth : 284mm , 28.4cm
Maximum Height : 91mm , 9.1cm
Maximum Width : 165mm , 16.5cm
Net Weight : 5.91kg
Shipping Depth : 368mm , 36.8cm
Shipping Height : 178mm , 17.8cm
Shipping Width : 241mm , 24.1cm
Shipping weight : 6.82kg
Environmental
Operating Environment : 0 - 40 °C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0 - 3000meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 %
Storage Elevation : 0-15000 meters
Audible noise at 1 meter from surface of unit : 40.0 dBA
Online thermal dissipation : 24.0BTU/hr
Conformance
Approvals : C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE
Standard warranty : 2-Year On-Site Warranty by SCHNEIDER ELECTRIC CPCS (THAILAND)
