Eaton 5A 700VA Tower
Technical specifications
Rating (VA/W) : 700VA/360W
Format : Tower
Electrical characteristics
Technology : Line interactive
Input voltage ranges without using batteries : 140 – 300 V
Output
Output voltage : 230V
Battery wave form : Stepped sine wave
Protection : PCBA current sensor (F/W protection)
Physical
Dimension D x W x H (mm) : 297 x 101 x 142
Weight (kg) : 4
Warranty : 2 Years On-Site
Technical specifications
Rating (VA/W) : 700VA/360W
Format : Tower
Electrical characteristics
Technology : Line interactive
Input voltage ranges without using batteries : 140 – 300 V
Output
Output voltage : 230V
Battery wave form : Stepped sine wave
Protection : PCBA current sensor (F/W protection)
Physical
Dimension D x W x H (mm) : 297 x 101 x 142
Weight (kg) : 4
Warranty : 2 Years On-Site
Eaton 5A 900VA Tower
Technical specifications
Rating (VA/W) : 900VA/480W
Format : Tower
Electrical characteristics
Technology : Line interactive
Input voltage ranges without using batteries : 140 – 300 V
Output
Output voltage : 230V
Battery wave form : Stepped sine wave
Protection : PCBA current sensor (F/W protection)
Physical
Dimension D x W x H (mm) : 297 x 101 x 142
Weight (kg) : 4.7
Warranty : 2 Years On-Site
Technical specifications
Rating (VA/W) : 900VA/480W
Format : Tower
Electrical characteristics
Technology : Line interactive
Input voltage ranges without using batteries : 140 – 300 V
Output
Output voltage : 230V
Battery wave form : Stepped sine wave
Protection : PCBA current sensor (F/W protection)
Physical
Dimension D x W x H (mm) : 297 x 101 x 142
Weight (kg) : 4.7
Warranty : 2 Years On-Site
Eaton 5A 1200VA Tower
Technical specifications
Rating (VA/W) : 1200VA/650W
Format : Tower
Electrical characteristics
Technology : Line interactive
Input voltage ranges without using batteries : 140 – 300 V
Output
Output voltage : 230V
Battery wave form : Stepped sine wave
Protection : PCBA current sensor (F/W protection)
Physical
Dimension D x W x H (mm) : 370 x 138 x 165
Weight (kg) : 6.25
Warranty : 2 Years On-Site
Technical specifications
Rating (VA/W) : 1200VA/650W
Format : Tower
Electrical characteristics
Technology : Line interactive
Input voltage ranges without using batteries : 140 – 300 V
Output
Output voltage : 230V
Battery wave form : Stepped sine wave
Protection : PCBA current sensor (F/W protection)
Physical
Dimension D x W x H (mm) : 370 x 138 x 165
Weight (kg) : 6.25
Warranty : 2 Years On-Site
Eaton 5A 1500VA Tower
Technical specifications
Rating (VA/W) : 1500VA/900W
Format : Tower
Electrical characteristics
Technology : Line interactive
Input voltage ranges without using batteries : 140 – 300 V
Output
Output voltage : 230V
Battery wave form : Stepped sine wave
Protection : PCBA current sensor (F/W protection)
Physical
Dimension D x W x H (mm) : 370 x 138 x 165
Weight (kg) : 10.85
Warranty : 2 Years On-Site
Technical specifications
Rating (VA/W) : 1500VA/900W
Format : Tower
Electrical characteristics
Technology : Line interactive
Input voltage ranges without using batteries : 140 – 300 V
Output
Output voltage : 230V
Battery wave form : Stepped sine wave
Protection : PCBA current sensor (F/W protection)
Physical
Dimension D x W x H (mm) : 370 x 138 x 165
Weight (kg) : 10.85
Warranty : 2 Years On-Site
Eaton 5A 2200VA Tower
Technical specifications
Rating (VA/W) : 2200VA/1200W
Format : Tower
Electrical characteristics
Technology : Line interactive
Input voltage ranges without using batteries : 140 – 300 V
Output
Output voltage : 230V
Battery wave form : Stepped sine wave
Protection : PCBA current sensor (F/W protection)
Physical
Dimension D x W x H (mm) : 370 x 138 x 165
Weight (kg) : 11.7
Warranty : 2 Years On-Site
Technical specifications
Rating (VA/W) : 2200VA/1200W
Format : Tower
Electrical characteristics
Technology : Line interactive
Input voltage ranges without using batteries : 140 – 300 V
Output
Output voltage : 230V
Battery wave form : Stepped sine wave
Protection : PCBA current sensor (F/W protection)
Physical
Dimension D x W x H (mm) : 370 x 138 x 165
Weight (kg) : 11.7
Warranty : 2 Years On-Site
Eaton 5E 1600i USB G2 Tower
Technical specifications
Rating (VA/W) : 1600VA/900W
Format : Tower
Electrical characteristics
Technology : Line interactive
Input voltage ranges without using batteries : 140 - 300 V
Input frequency range : 50 / 60 Hz (45 - 65 Hz working range)
Output
Output voltage : 230V
Output connection (IEC models) : 6 IEC C13 outlets
Physical
Dimension D x H x W (mm) : 330 x 180 x 133
Weight (kg) : 8.9
Warranty : 3 Years On-Site
Technical specifications
Rating (VA/W) : 1600VA/900W
Format : Tower
Electrical characteristics
Technology : Line interactive
Input voltage ranges without using batteries : 140 - 300 V
Input frequency range : 50 / 60 Hz (45 - 65 Hz working range)
Output
Output voltage : 230V
Output connection (IEC models) : 6 IEC C13 outlets
Physical
Dimension D x H x W (mm) : 330 x 180 x 133
Weight (kg) : 8.9
Warranty : 3 Years On-Site
Eaton 9A 1000VA Tower
Technology : Online Double Conversion UPS
Format : Tower
Rating (VA/Watts) : 1000VA/900W
Connection :
- Input Connections : IEC C14
- Output Connections : (4) IEC 320 C13
Input voltage : 220/ 230/ 240VAC
Input Voltage Range : 176-300V without derating. (Up to 100-176V with derating)
Output Frequency / THDI : 50/60 Hz, THDI 5 % typical, 7% Max
Communication Ports :
- RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
- Segment LCD, red colour indication in case of warning & error
Connectivity Card : NMC G1/ AS400 / CMC G1 modbus
Dimensions W x H x D : 145 x 230 x 355 mm
Weight : 9.6 kg
Warranty : 3Years On-Site
Technology : Online Double Conversion UPS
Format : Tower
Rating (VA/Watts) : 1000VA/900W
Connection :
- Input Connections : IEC C14
- Output Connections : (4) IEC 320 C13
Input voltage : 220/ 230/ 240VAC
Input Voltage Range : 176-300V without derating. (Up to 100-176V with derating)
Output Frequency / THDI : 50/60 Hz, THDI 5 % typical, 7% Max
Communication Ports :
- RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
- Segment LCD, red colour indication in case of warning & error
Connectivity Card : NMC G1/ AS400 / CMC G1 modbus
Dimensions W x H x D : 145 x 230 x 355 mm
Weight : 9.6 kg
Warranty : 3Years On-Site
Eaton 9E 1000VA UPS Tower
Technical specifications
Rating (VA/W) : 1000VA / 800W
Format : Tower
Electrical characteristics
Technology : Online double conversion
Input voltage ranges without using batteries : 100 – 300V
Output voltage : 208 / 220 / 230 / 240V ±1%
Output THDU : <2% for 100% linear load, <6% for 100% non-linear load
Connections
Input : IEC C14
Outputs Tower model : 4 x IEC C13
Communication
Communication ports : 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously
Communication slot : 1 slot for Network-MS, Modbus-MS or Relay-MS cards
Software : Intelligent Power Software
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Technical specifications
Rating (VA/W) : 1000VA / 800W
Format : Tower
Electrical characteristics
Technology : Online double conversion
Input voltage ranges without using batteries : 100 – 300V
Output voltage : 208 / 220 / 230 / 240V ±1%
Output THDU : <2% for 100% linear load, <6% for 100% non-linear load
Connections
Input : IEC C14
Outputs Tower model : 4 x IEC C13
Communication
Communication ports : 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously
Communication slot : 1 slot for Network-MS, Modbus-MS or Relay-MS cards
Software : Intelligent Power Software
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Eaton 9A 1000VA Rack2U
Technology : Online Double Conversion UPS
Format : Rack 2U
Rating (VA/Watts) : 1000VA/900W
Connection :
- Input Connections : IEC C14
- Output Connections : (4) IEC 320 C13
Input voltage : 220/ 230/ 240VAC
Input Voltage Range : 176-300V without derating. (Up to 100-176V with derating)
Output Frequency / THDI : 50/60 Hz, THDI 5 % typical, 7% Max
Communication Ports :
- RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
- Segment LCD, red colour indication in case of warning & error
Connectivity Card : NMC G1/ AS400 / CMC G1 modbus
Dimensions W x H x D : 438 x 86.5 x 435 mm
Weight : 12.6 kg
Warranty : 3Years On-Site
Technology : Online Double Conversion UPS
Format : Rack 2U
Rating (VA/Watts) : 1000VA/900W
Connection :
- Input Connections : IEC C14
- Output Connections : (4) IEC 320 C13
Input voltage : 220/ 230/ 240VAC
Input Voltage Range : 176-300V without derating. (Up to 100-176V with derating)
Output Frequency / THDI : 50/60 Hz, THDI 5 % typical, 7% Max
Communication Ports :
- RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
- Segment LCD, red colour indication in case of warning & error
Connectivity Card : NMC G1/ AS400 / CMC G1 modbus
Dimensions W x H x D : 438 x 86.5 x 435 mm
Weight : 12.6 kg
Warranty : 3Years On-Site
Eaton 9A 2000VA Tower
Technology : Online Double Conversion UPS
Format : Tower
Rating (VA/Watts) : 2000VA/1800W
Connection :
- Input Connections : IEC C14
- Output Connections : (4) IEC 320 C13
Input voltage : 220/ 230/ 240VAC
Input Voltage Range : 176-300V without derating. (Up to 100-176V with derating)
Output Frequency / THDI : 50/60 Hz, THDI 5 % typical, 7% Max
Communication Ports :
- RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
- Segment LCD, red colour indication in case of warning & error
Connectivity Card : NMC G1/ AS400 / CMC G1 modbus
Dimensions W x H x D : 190 x 325 x 400 mm
Weight : 17.8 kg
Warranty : 3Years On-Site
Technology : Online Double Conversion UPS
Format : Tower
Rating (VA/Watts) : 2000VA/1800W
Connection :
- Input Connections : IEC C14
- Output Connections : (4) IEC 320 C13
Input voltage : 220/ 230/ 240VAC
Input Voltage Range : 176-300V without derating. (Up to 100-176V with derating)
Output Frequency / THDI : 50/60 Hz, THDI 5 % typical, 7% Max
Communication Ports :
- RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
- Segment LCD, red colour indication in case of warning & error
Connectivity Card : NMC G1/ AS400 / CMC G1 modbus
Dimensions W x H x D : 190 x 325 x 400 mm
Weight : 17.8 kg
Warranty : 3Years On-Site
Eaton 9A 3000VA Tower
Technology : Online Double Conversion UPS
Format : Tower
Rating (VA/Watts) : 3000VA/2700W
Connection :
- Input Connections : IEC C20
- Output Connections : (6) IEC 320 C13 + (1)C19
Input voltage : 220/ 230/ 240VAC
Input Voltage Range : 176-300V without derating. (Up to 100-176V with derating)
Output Frequency / THDI : 50/60 Hz, THDI 5 % typical, 7% Max
Communication Ports :
- RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
- Segment LCD, red colour indication in case of warning & error
Connectivity Card : NMC G1/ AS400 / CMC G1 modbus
Dimensions W x H x D : 190 x 325 x 400 mm
Weight : 23.5 kg
Warranty : 3Years On-Site
Technology : Online Double Conversion UPS
Format : Tower
Rating (VA/Watts) : 3000VA/2700W
Connection :
- Input Connections : IEC C20
- Output Connections : (6) IEC 320 C13 + (1)C19
Input voltage : 220/ 230/ 240VAC
Input Voltage Range : 176-300V without derating. (Up to 100-176V with derating)
Output Frequency / THDI : 50/60 Hz, THDI 5 % typical, 7% Max
Communication Ports :
- RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
- Segment LCD, red colour indication in case of warning & error
Connectivity Card : NMC G1/ AS400 / CMC G1 modbus
Dimensions W x H x D : 190 x 325 x 400 mm
Weight : 23.5 kg
Warranty : 3Years On-Site
Eaton 9SX 1000IR, 230V, Rackmount 2U
Technical specifications
Rating (VA/W) : 1000/900
Format : Rack
Electrical characteristics
Technology : On-line double conversion with PFC (Power Factor Correction) system
Input Voltage Range : 190-276V without derating (up to 120–276V with derating)
Frequency Range : 40-70 Hz
Outlets : (6) IEC-320-C13
Output Frequency : 50/60 Hz autoselect, frequency converter as standard
Communication
Communication ports : 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
1 mini-terminal block for Output relay
Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Dimensions (H x W x D, mm) : 86.5 x 438 x 438
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Technical specifications
Rating (VA/W) : 1000/900
Format : Rack
Electrical characteristics
Technology : On-line double conversion with PFC (Power Factor Correction) system
Input Voltage Range : 190-276V without derating (up to 120–276V with derating)
Frequency Range : 40-70 Hz
Outlets : (6) IEC-320-C13
Output Frequency : 50/60 Hz autoselect, frequency converter as standard
Communication
Communication ports : 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
1 mini-terminal block for Output relay
Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Dimensions (H x W x D, mm) : 86.5 x 438 x 438
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Eaton 9E 2000VA UPS Tower
Technical specifications
Rating (VA/W) : 2000VA / 1600W
Format : Tower
Electrical characteristics
Technology : Online double conversion
Input voltage ranges without using batteries : 100 – 300V
Output voltage : 208 / 220 / 230 / 240V ±1%
Output THDU : <2% for 100% linear load, <6% for 100% non-linear load
Connections
Input : IEC C14
Outputs Tower model : 6 x IEC C13
Communication
Communication ports : 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously
Communication slot : 1 slot for Network-MS, Modbus-MS or Relay-MS cards
Software : Intelligent Power Software
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Technical specifications
Rating (VA/W) : 2000VA / 1600W
Format : Tower
Electrical characteristics
Technology : Online double conversion
Input voltage ranges without using batteries : 100 – 300V
Output voltage : 208 / 220 / 230 / 240V ±1%
Output THDU : <2% for 100% linear load, <6% for 100% non-linear load
Connections
Input : IEC C14
Outputs Tower model : 6 x IEC C13
Communication
Communication ports : 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously
Communication slot : 1 slot for Network-MS, Modbus-MS or Relay-MS cards
Software : Intelligent Power Software
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Eaton 9A 2000VA Rack2U
Technology : Online Double Conversion UPS
Format : Rack 2U
Rating (VA/Watts) : 2000VA/1800W
Connection :
- Input Connections : IEC C14
- Output Connections : (4) IEC 320 C13
Input voltage : 220/ 230/ 240VAC
Input Voltage Range : 176-300V without derating. (Up to 100-176V with derating)
Output Frequency / THDI : 50/60 Hz, THDI 5 % typical, 7% Max
Communication Ports :
- RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
- Segment LCD, red colour indication in case of warning & error
Connectivity Card : NMC G1/ AS400 / CMC G1 modbus
Dimensions W x H x D : 438 x 86.5 x 435 mm
Weight : 19.3 kg
Warranty : 3Years On-Site
Technology : Online Double Conversion UPS
Format : Rack 2U
Rating (VA/Watts) : 2000VA/1800W
Connection :
- Input Connections : IEC C14
- Output Connections : (4) IEC 320 C13
Input voltage : 220/ 230/ 240VAC
Input Voltage Range : 176-300V without derating. (Up to 100-176V with derating)
Output Frequency / THDI : 50/60 Hz, THDI 5 % typical, 7% Max
Communication Ports :
- RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
- Segment LCD, red colour indication in case of warning & error
Connectivity Card : NMC G1/ AS400 / CMC G1 modbus
Dimensions W x H x D : 438 x 86.5 x 435 mm
Weight : 19.3 kg
Warranty : 3Years On-Site
Eaton 9SX1000I, 1000VA 230V
Techonology : On-line double-conversion with Power Factor Correction (PFC) system
Format : Tower
Rating (VA/Watts) : 1000VA/900W
Input Connections : 1 IEC C14 (10A)
Output Connections : 6 IEC C13 (10A) sockets
Switched Outlet Group : 2 outlet groups
Input Voltage Range : 190-276V without derating (up to 120-276V with derating)
Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Communication ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- 1 mini-terminal block for Output relay
Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Dimensions H x W x D : 252 x 160 x 387 (mm)
Weight : 14.8 Kg
Warranty : 3Years On-Site
Techonology : On-line double-conversion with Power Factor Correction (PFC) system
Format : Tower
Rating (VA/Watts) : 1000VA/900W
Input Connections : 1 IEC C14 (10A)
Output Connections : 6 IEC C13 (10A) sockets
Switched Outlet Group : 2 outlet groups
Input Voltage Range : 190-276V without derating (up to 120-276V with derating)
Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Communication ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- 1 mini-terminal block for Output relay
Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Dimensions H x W x D : 252 x 160 x 387 (mm)
Weight : 14.8 Kg
Warranty : 3Years On-Site
Eaton 5PX 1500i RT2U G2
Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Format : RT2U (tower / rack 2U)
Rating (VA/Watts) : 1500VA / 1500W
Connection :
- Input : IEC C14 (10A)
- Outputs : 8 x IEC C13 (10A)
- Remote controlled sockets : 2 groups of 2 x IEC C13 (10 A)
Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V)
Input frequency Range Without Using Batteries : 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Output Voltages : 230 V (+6/-10 %) (Adjustable to 200V* / 208V / 220V / 230V / 240V)
Output Frequency : 50/60 Hz +/- 0.1 Hz (autosensing)
Communication Ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote ON/OFF
- 1 mini-terminal block for Remote Power OFF + 1 mini-terminal block for output relay
Communication slot : 1 slot for Network M2 (included in Netpack version), INDGW-M2 or Relay-MS cards
Dimensions W x D x H / Weight : 438x448x85.5 mm / 27.8kg
Warranty : 3Years On-Site
Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Format : RT2U (tower / rack 2U)
Rating (VA/Watts) : 1500VA / 1500W
Connection :
- Input : IEC C14 (10A)
- Outputs : 8 x IEC C13 (10A)
- Remote controlled sockets : 2 groups of 2 x IEC C13 (10 A)
Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V)
Input frequency Range Without Using Batteries : 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Output Voltages : 230 V (+6/-10 %) (Adjustable to 200V* / 208V / 220V / 230V / 240V)
Output Frequency : 50/60 Hz +/- 0.1 Hz (autosensing)
Communication Ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote ON/OFF
- 1 mini-terminal block for Remote Power OFF + 1 mini-terminal block for output relay
Communication slot : 1 slot for Network M2 (included in Netpack version), INDGW-M2 or Relay-MS cards
Dimensions W x D x H / Weight : 438x448x85.5 mm / 27.8kg
Warranty : 3Years On-Site
Eaton 9PX 1000i RT2U
Technology : On-line double conversion with Power Factor Correction (PFC) system
Format : RT2U (tower/rack 2U)
Rating (VA/Watts) : 1000VA/1000W
Connection :
- Output Connections : 8 IEC C13 (10A) sockets
- Switched outlet group : 2 outlet groups
Input voltage : 200/208/220/230/240V
Input Voltage Range : 176-276V without derating (up to 100-276V with derating)
Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Communication Ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF
- 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay
Communication slot : 1 slot for Network-MS card (included in netpack versions), ModBus-MS or Relay-MS cards
Dimensions H x W x D : 86.5x440x450 (mm)
Weight : 17.4 (kg)
Warranty : 3Years On-Site
Technology : On-line double conversion with Power Factor Correction (PFC) system
Format : RT2U (tower/rack 2U)
Rating (VA/Watts) : 1000VA/1000W
Connection :
- Output Connections : 8 IEC C13 (10A) sockets
- Switched outlet group : 2 outlet groups
Input voltage : 200/208/220/230/240V
Input Voltage Range : 176-276V without derating (up to 100-276V with derating)
Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Communication Ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF
- 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay
Communication slot : 1 slot for Network-MS card (included in netpack versions), ModBus-MS or Relay-MS cards
Dimensions H x W x D : 86.5x440x450 (mm)
Weight : 17.4 (kg)
Warranty : 3Years On-Site
Eaton 9A 3000VA Rack2U
Technology : Online Double Conversion UPS
Format : Rack 2U
Rating (VA/Watts) : 3000VA/2700W
Connection :
- Input Connections : IEC C20
- Output Connections : (6) IEC 320 C13 + (1)C19
Input voltage : 220/ 230/ 240VAC
Input Voltage Range : 176-300V without derating. (Up to 100-176V with derating)
Output Frequency / THDI : 50/60 Hz, THDI 5 % typical, 7% Max
Communication Ports :
- RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
- Segment LCD, red colour indication in case of warning & error
Connectivity Card : NMC G1/ AS400 / CMC G1 modbus
Dimensions W x H x D : 438 x 86.5 x 608 mm
Weight : 27.9 kg
Warranty : 3Years On-Site
Technology : Online Double Conversion UPS
Format : Rack 2U
Rating (VA/Watts) : 3000VA/2700W
Connection :
- Input Connections : IEC C20
- Output Connections : (6) IEC 320 C13 + (1)C19
Input voltage : 220/ 230/ 240VAC
Input Voltage Range : 176-300V without derating. (Up to 100-176V with derating)
Output Frequency / THDI : 50/60 Hz, THDI 5 % typical, 7% Max
Communication Ports :
- RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
- Segment LCD, red colour indication in case of warning & error
Connectivity Card : NMC G1/ AS400 / CMC G1 modbus
Dimensions W x H x D : 438 x 86.5 x 608 mm
Weight : 27.9 kg
Warranty : 3Years On-Site
Eaton 5PX 1500i RT2U
Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Configuration : Tower/Rack 2U
Rating (VA/Watts) : 1500VA/1350W
Connection :
- Input : 1 IEC C14 (10A)
- Outputs : 8 IEC C13 (10A)
- Switched Outlet Group : 2 outlet groups
Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V) 47 to 70Hz (50 Hz system)
Input frequency Range Without Using Batteries : 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Output Voltages : 230 V (+6/-10 %) Adjustable to 200V / 208V / 220V / 230V / 240V)
Output Frequency : 50/60 Hz +/- 0.1 % (autosensing)
Communication Ports :
- 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)
- 1 mini-terminal block for remote ON/OFF and Remote Power Off
Communications Card Slots : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Dimensions H x W x D / Weight : 441 x 522 x 86.2 (2U) mm / 27.6kg
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Configuration : Tower/Rack 2U
Rating (VA/Watts) : 1500VA/1350W
Connection :
- Input : 1 IEC C14 (10A)
- Outputs : 8 IEC C13 (10A)
- Switched Outlet Group : 2 outlet groups
Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V) 47 to 70Hz (50 Hz system)
Input frequency Range Without Using Batteries : 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Output Voltages : 230 V (+6/-10 %) Adjustable to 200V / 208V / 220V / 230V / 240V)
Output Frequency : 50/60 Hz +/- 0.1 % (autosensing)
Communication Ports :
- 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)
- 1 mini-terminal block for remote ON/OFF and Remote Power Off
Communications Card Slots : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Dimensions H x W x D / Weight : 441 x 522 x 86.2 (2U) mm / 27.6kg
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Eaton 9SX3000I, 3000VA 230V (No Battery)
Techonology : On-line double-conversion with Power Factor Correction (PFC) system
Format : Tower
Rating (VA/Watts) : 3000VA/2700W
Input Connections : 1 IEC C20 (16A)
Output Connections : 8 IEC C13 (10A) sockets + 1 IEC C19 (16A) socket
Switched Outlet Group : 2 outlet groups
Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Communication ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- 1 mini-terminal block for Output relay
Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Dimensions H x W x D : 346 x 214 x 412 (mm)
Warranty : 3Years On-Site
Techonology : On-line double-conversion with Power Factor Correction (PFC) system
Format : Tower
Rating (VA/Watts) : 3000VA/2700W
Input Connections : 1 IEC C20 (16A)
Output Connections : 8 IEC C13 (10A) sockets + 1 IEC C19 (16A) socket
Switched Outlet Group : 2 outlet groups
Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Communication ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- 1 mini-terminal block for Output relay
Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Dimensions H x W x D : 346 x 214 x 412 (mm)
Warranty : 3Years On-Site

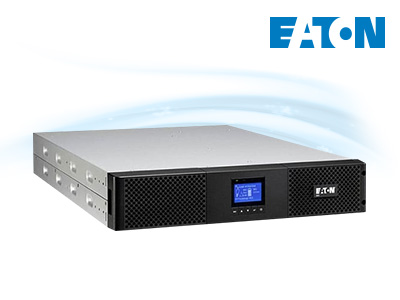

Eaton 9SX 2000IR, 230V, Rackmount 2U
Technical specifications
Rating (VA/W) : 2000VA/1800W
Format : Rack
Electrical characteristics
Technology : On-line double-conversion with Power Factor Correction (PFC) system
Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
Frequency Range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Outputs : 8 x IEC C13 (10A) sockets
Switched Outlet Group : 2 outlet groups
Communication
Communication ports : 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
1 mini-terminal block for Output relay
Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Dimensions (H x W x D, mm) : 86.5 x 438 x 608
Weight (kg) : 26.5
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Technical specifications
Rating (VA/W) : 2000VA/1800W
Format : Rack
Electrical characteristics
Technology : On-line double-conversion with Power Factor Correction (PFC) system
Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
Frequency Range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Outputs : 8 x IEC C13 (10A) sockets
Switched Outlet Group : 2 outlet groups
Communication
Communication ports : 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
1 mini-terminal block for Output relay
Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Dimensions (H x W x D, mm) : 86.5 x 438 x 608
Weight (kg) : 26.5
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Eaton 9SX2000I, 2000VA 230V
Techonology : On-line double-conversion with Power Factor Correction (PFC) system
Format : Tower
Rating (VA/Watts) : 2000VA/1800W
Input Connections : 1 IEC C14 (10A)
Output Connections : 8 IEC C13 (10A) sockets
Switched Outlet Group : 2 outlet groups
Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Communication ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- 1 mini-terminal block for Output relay
Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Dimensions H x W x D : 346 x 214 x 412 (mm)
Weight : 33.3 Kg
Warranty : 3Years On-Site
Techonology : On-line double-conversion with Power Factor Correction (PFC) system
Format : Tower
Rating (VA/Watts) : 2000VA/1800W
Input Connections : 1 IEC C14 (10A)
Output Connections : 8 IEC C13 (10A) sockets
Switched Outlet Group : 2 outlet groups
Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Communication ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- 1 mini-terminal block for Output relay
Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Dimensions H x W x D : 346 x 214 x 412 (mm)
Weight : 33.3 Kg
Warranty : 3Years On-Site
Eaton 9SX1500I, 1500VA
Techonology : On-line double-conversion with Power Factor Correction (PFC) system
Format : Tower
Rating (VA/Watts) : 1500 VA/1350W
Input Connections : 1 IEC C14 (10A)
Output Connections : 6 IEC C13 (10A) sockets
Switched Outlet Group : 2 outlet groups
Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Communication ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- 1 mini-terminal block for Output relay
Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Dimensions H x W x D : 252 x 160 x 437 (mm)
Weight : 18.5 Kg
Warranty : 3Years On-Site
Techonology : On-line double-conversion with Power Factor Correction (PFC) system
Format : Tower
Rating (VA/Watts) : 1500 VA/1350W
Input Connections : 1 IEC C14 (10A)
Output Connections : 6 IEC C13 (10A) sockets
Switched Outlet Group : 2 outlet groups
Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Communication ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- 1 mini-terminal block for Output relay
Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Dimensions H x W x D : 252 x 160 x 437 (mm)
Weight : 18.5 Kg
Warranty : 3Years On-Site
Eaton 5PX 2200i RT2U UPS
Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Configuration : Tower/Rack 2U
Rating (VA/Watts) : 2200VA/1980W
Connection :
- Input : 1 IEC C14 (10A)
- Outputs : 8 IEC C13 (10A) + 1 IEC C19 (16A)
Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V) 47 to 70Hz (50 Hz system)
Input frequency Range Without Using Batteries : 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Output Voltages : 230 V (+6/-10 %) Adjustable to 200V / 208V / 220V / 230V / 240V)
Output Frequency : 50/60 Hz +/- 0.1 % (autosensing)
Communication Ports :
- 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)
- 1 mini-terminal block for remote ON/OFF and Remote Power Off
Communications Card Slots : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Dimensions H x W x D / Weight : 441 x 522 x 86.2 (2U) mm / 28.5 kg
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Configuration : Tower/Rack 2U
Rating (VA/Watts) : 2200VA/1980W
Connection :
- Input : 1 IEC C14 (10A)
- Outputs : 8 IEC C13 (10A) + 1 IEC C19 (16A)
Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V) 47 to 70Hz (50 Hz system)
Input frequency Range Without Using Batteries : 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Output Voltages : 230 V (+6/-10 %) Adjustable to 200V / 208V / 220V / 230V / 240V)
Output Frequency : 50/60 Hz +/- 0.1 % (autosensing)
Communication Ports :
- 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)
- 1 mini-terminal block for remote ON/OFF and Remote Power Off
Communications Card Slots : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Dimensions H x W x D / Weight : 441 x 522 x 86.2 (2U) mm / 28.5 kg
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Eaton 5PX 2200i RT2U G2
Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Format : RT2U & RT3U
Rating (VA/Watts) : 2200VA / 2200W
Connection :
- Input : IEC C20 (16A)
- Outputs : 8 x IEC C13 (10A), 2 x IEC C19 (16A)
- Remote controlled sockets : 1 group of 2 x IEC C13 (10 A), 1 group of 2 x IEC C13 (10 A) + 1 x IEC C19 (16A)
Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V)
Input frequency Range Without Using Batteries : 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Output Voltages : 230 V (+6/-10 %) (Adjustable to 200V* / 208V / 220V / 230V / 240V)
Output Frequency : 50/60 Hz +/- 0.1 Hz (autosensing)
Communication Ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote ON/OFF
- 1 mini-terminal block for Remote Power OFF + 1 mini-terminal block for output relay
Communication slot : 1 slot for Network M2 (included in Netpack version), INDGW-M2 or Relay-MS cards
Dimensions W x D x H / Weight : 438x603x85.5 (RT2U), 438x483x129 (RT3U) / 40.4 (RT2U), 39.7 (RT3U)
Warranty : 3Years On-Site
Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Format : RT2U & RT3U
Rating (VA/Watts) : 2200VA / 2200W
Connection :
- Input : IEC C20 (16A)
- Outputs : 8 x IEC C13 (10A), 2 x IEC C19 (16A)
- Remote controlled sockets : 1 group of 2 x IEC C13 (10 A), 1 group of 2 x IEC C13 (10 A) + 1 x IEC C19 (16A)
Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V)
Input frequency Range Without Using Batteries : 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Output Voltages : 230 V (+6/-10 %) (Adjustable to 200V* / 208V / 220V / 230V / 240V)
Output Frequency : 50/60 Hz +/- 0.1 Hz (autosensing)
Communication Ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote ON/OFF
- 1 mini-terminal block for Remote Power OFF + 1 mini-terminal block for output relay
Communication slot : 1 slot for Network M2 (included in Netpack version), INDGW-M2 or Relay-MS cards
Dimensions W x D x H / Weight : 438x603x85.5 (RT2U), 438x483x129 (RT3U) / 40.4 (RT2U), 39.7 (RT3U)
Warranty : 3Years On-Site
Eaton 9SX3000I, 3000VA 230V
Techonology : On-line double-conversion with Power Factor Correction (PFC) system
Format : Tower
Rating (VA/Watts) : 3000VA/2700W
Input Connections : 1 IEC C20 (16A)
Output Connections : 8 IEC C13 (10A) sockets + 1 IEC C19 (16A) socket
Switched Outlet Group : 2 outlet groups
Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Communication ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- 1 mini-terminal block for Output relay
Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Dimensions H x W x D : 346 x 214 x 412 (mm)
Weight : 33.4 Kg
Warranty : 3Years On-Site
Techonology : On-line double-conversion with Power Factor Correction (PFC) system
Format : Tower
Rating (VA/Watts) : 3000VA/2700W
Input Connections : 1 IEC C20 (16A)
Output Connections : 8 IEC C13 (10A) sockets + 1 IEC C19 (16A) socket
Switched Outlet Group : 2 outlet groups
Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Communication ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- 1 mini-terminal block for Output relay
Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Dimensions H x W x D : 346 x 214 x 412 (mm)
Weight : 33.4 Kg
Warranty : 3Years On-Site
Eaton 9SX 3000IR, 230V, Rackmount 2U
Technical specifications
Rating (VA/W) : 3000VA/2700W
Format : Rack
Electrical characteristics
Technology : On-line double-conversion with Power Factor Correction (PFC) system
Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
Frequency Range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Input : 1 x IEC C20 (20A)
Outputs : 8 x IEC C13 (10A) sockets + 1 x IEC 19 (16A) socket
Switched Outlet Group : 2 outlet groups
Communication
Communication ports : 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
1 mini-terminal block for Output relay
Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Dimensions (H x W x D, mm) : 86.5 x 438 x 608
Weight (kg) : 26.5
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Technical specifications
Rating (VA/W) : 3000VA/2700W
Format : Rack
Electrical characteristics
Technology : On-line double-conversion with Power Factor Correction (PFC) system
Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
Frequency Range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Input : 1 x IEC C20 (20A)
Outputs : 8 x IEC C13 (10A) sockets + 1 x IEC 19 (16A) socket
Switched Outlet Group : 2 outlet groups
Communication
Communication ports : 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
1 mini-terminal block for Output relay
Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Dimensions (H x W x D, mm) : 86.5 x 438 x 608
Weight (kg) : 26.5
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Eaton 9PX 2200i RT2U
Technology : On-line double conversion with Power Factor Correction (PFC) system
Format : RT2U (tower/rack 2U) and RT3U (tower/rack 3U)
Rating (VA/Watts) : 2200VA/2200W
Connection :
- Output Connections : 8 IEC C13 (10A) sockets + 2 IEC C19 (16A) sockets
- Switched outlet group : 2 outlet groups
Input voltage : 200/208/220/230/240V
Input Voltage Range : 176-276V without derating (up to 100-276V with derating)
Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Communication Ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF
- 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay
Communication slot : 1 slot for Network-MS card (included in netpack versions), ModBus-MS or Relay-MS cards
Dimensions H x W x D : 2U : 86.5x440x605 / 3U : 130x440x485
Weight : 25 kg / 24.5 kg
Warranty : 3Years On-Site
Technology : On-line double conversion with Power Factor Correction (PFC) system
Format : RT2U (tower/rack 2U) and RT3U (tower/rack 3U)
Rating (VA/Watts) : 2200VA/2200W
Connection :
- Output Connections : 8 IEC C13 (10A) sockets + 2 IEC C19 (16A) sockets
- Switched outlet group : 2 outlet groups
Input voltage : 200/208/220/230/240V
Input Voltage Range : 176-276V without derating (up to 100-276V with derating)
Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Communication Ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF
- 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay
Communication slot : 1 slot for Network-MS card (included in netpack versions), ModBus-MS or Relay-MS cards
Dimensions H x W x D : 2U : 86.5x440x605 / 3U : 130x440x485
Weight : 25 kg / 24.5 kg
Warranty : 3Years On-Site
Eaton 5PX 3000i RT2U UPS
Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Configuration : RT2U and RT3U
Rating (VA/Watts) : 3000VA/2700W
Connection :
- Input : 1 IEC C14 (10A)
- Outputs : 8 IEC C13 (10A) + 1 IEC C19 (16A)
Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V) 47 to 70Hz (50 Hz system)
Input frequency Range Without Using Batteries : 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Output Voltages : 230 V (+6/-10 %) Adjustable to 200V / 208V / 220V / 230V / 240V)
Output Frequency : 50/60 Hz +/- 0.1 % (autosensing)
Communication Ports :
- 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)
- 1 mini-terminal block for remote ON/OFF and Remote Power Off
Communications Card Slots : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Dimensions H x W x D / Weight : 441 x 647 x 86.2 (RT2U) mm / 38.08 kg
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Configuration : RT2U and RT3U
Rating (VA/Watts) : 3000VA/2700W
Connection :
- Input : 1 IEC C14 (10A)
- Outputs : 8 IEC C13 (10A) + 1 IEC C19 (16A)
Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V) 47 to 70Hz (50 Hz system)
Input frequency Range Without Using Batteries : 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Output Voltages : 230 V (+6/-10 %) Adjustable to 200V / 208V / 220V / 230V / 240V)
Output Frequency : 50/60 Hz +/- 0.1 % (autosensing)
Communication Ports :
- 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)
- 1 mini-terminal block for remote ON/OFF and Remote Power Off
Communications Card Slots : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Dimensions H x W x D / Weight : 441 x 647 x 86.2 (RT2U) mm / 38.08 kg
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Eaton 5PX 3000i RT2U G2
Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Format : RT2U & RT3U
Rating (VA/Watts) : 3000VA / 3000W
Connection :
- Input : IEC C20 (16A)
- Outputs : 8 x IEC C13 (10A), 2 x IEC C19 (16A)
- Remote controlled sockets : 1 group of 2 x IEC C13 (10 A), 1 group of 2 x IEC C13 (10 A) + 1 x IEC C19 (16A)
Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V)
Input frequency Range Without Using Batteries : 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Output Voltages : 230 V (+6/-10 %) (Adjustable to 200V* / 208V / 220V / 230V / 240V)
Output Frequency : 50/60 Hz +/- 0.1 Hz (autosensing)
Communication Ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote ON/OFF
- 1 mini-terminal block for Remote Power OFF + 1 mini-terminal block for output relay
Communication slot : 1 slot for Network M2 (included in Netpack version), INDGW-M2 or Relay-MS cards
Dimensions W x D x H / Weight : 438x603x85.5 (RT2U), 438x483x129 (RT3U) / 40.4 (RT2U), 39.7 (RT3U)
Warranty : 3Years On-Site
Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Format : RT2U & RT3U
Rating (VA/Watts) : 3000VA / 3000W
Connection :
- Input : IEC C20 (16A)
- Outputs : 8 x IEC C13 (10A), 2 x IEC C19 (16A)
- Remote controlled sockets : 1 group of 2 x IEC C13 (10 A), 1 group of 2 x IEC C13 (10 A) + 1 x IEC C19 (16A)
Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V)
Input frequency Range Without Using Batteries : 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Output Voltages : 230 V (+6/-10 %) (Adjustable to 200V* / 208V / 220V / 230V / 240V)
Output Frequency : 50/60 Hz +/- 0.1 Hz (autosensing)
Communication Ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote ON/OFF
- 1 mini-terminal block for Remote Power OFF + 1 mini-terminal block for output relay
Communication slot : 1 slot for Network M2 (included in Netpack version), INDGW-M2 or Relay-MS cards
Dimensions W x D x H / Weight : 438x603x85.5 (RT2U), 438x483x129 (RT3U) / 40.4 (RT2U), 39.7 (RT3U)
Warranty : 3Years On-Site
Eaton 9PX 3000i RT2U
Technology : On-line double conversion with Power Factor Correction (PFC) system
Format : RT2U (tower/rack 2U) and RT3U (tower/rack 3U)
Rating (VA/Watts) : 3000VA/3000W
Connection :
- Output Connections : 8 IEC C13 (10A) sockets + 2 IEC C19 (16A) sockets
- Switched outlet group : 2 outlet groups
Input voltage : 200/208/220/230/240V
Input Voltage Range : 176-276V without derating (up to 100-276V with derating)
Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Communication Ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF
- 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay
Communication slot : 1 slot for Network-MS card (included in netpack versions), ModBus-MS or Relay-MS cards
Dimensions H x W x D : 2U : 86.5x440x605 / 3U : 130x440x485
Weight : 27.6 kg / 27.4 kg
Warranty : 3Years On-Site
Technology : On-line double conversion with Power Factor Correction (PFC) system
Format : RT2U (tower/rack 2U) and RT3U (tower/rack 3U)
Rating (VA/Watts) : 3000VA/3000W
Connection :
- Output Connections : 8 IEC C13 (10A) sockets + 2 IEC C19 (16A) sockets
- Switched outlet group : 2 outlet groups
Input voltage : 200/208/220/230/240V
Input Voltage Range : 176-276V without derating (up to 100-276V with derating)
Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
Communication Ports :
- 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF
- 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay
Communication slot : 1 slot for Network-MS card (included in netpack versions), ModBus-MS or Relay-MS cards
Dimensions H x W x D : 2U : 86.5x440x605 / 3U : 130x440x485
Weight : 27.6 kg / 27.4 kg
Warranty : 3Years On-Site
Eaton 9E 6KVA 1:1 Tower
Technical specifications
Rating (VA/W) : 6000VA/4800W
Format : Tower
Electrical characteristics
Technology : Online double-conversion
Input voltage ranges without using batteries : 176-276V without derating
Output voltage : 220V/230V/240V ±2 %
Output THDU : <3%
Communication
Communication ports : 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
Communication slot : 1 slot for Network-MS, ModBus-MS or Relay-MS cards
Software : Intelligent Power Software
Warranty : 2 Years On-Site Service by Eaton (Thailand)
Technical specifications
Rating (VA/W) : 6000VA/4800W
Format : Tower
Electrical characteristics
Technology : Online double-conversion
Input voltage ranges without using batteries : 176-276V without derating
Output voltage : 220V/230V/240V ±2 %
Output THDU : <3%
Communication
Communication ports : 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
Communication slot : 1 slot for Network-MS, ModBus-MS or Relay-MS cards
Software : Intelligent Power Software
Warranty : 2 Years On-Site Service by Eaton (Thailand)
Eaton 9E 10KVA 1:1 and 3:1 Tower with supercharger (no battery)
Technology : Online double conversion
Format : Tower
Rating (VA/Watts) : 10kVA/8kW
Connection :
- Output Connections : Hardwired
- Output Frequency : 50/60 Hz autoselect
Input voltage : 220/230/240V
Input Voltage Range : 176-276V without derating (up to 110-276V with derating)
Input frequency range : 50/60 Hz autoselection
Output voltage/THDU : 220V/230V/240V ±2 %, THDU<3%
Communication Ports : 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
Communication slot : 1 slot for Network M2, ModBus-MS or Relay-MS cards
Software : Eaton IPM Editions Software
Dimensions D x H x W : 612.9 x 708.5 x262.4 (mm)
Weight : 28.9 (kg)
Warranty : 3Years On-Site
Technology : Online double conversion
Format : Tower
Rating (VA/Watts) : 10kVA/8kW
Connection :
- Output Connections : Hardwired
- Output Frequency : 50/60 Hz autoselect
Input voltage : 220/230/240V
Input Voltage Range : 176-276V without derating (up to 110-276V with derating)
Input frequency range : 50/60 Hz autoselection
Output voltage/THDU : 220V/230V/240V ±2 %, THDU<3%
Communication Ports : 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
Communication slot : 1 slot for Network M2, ModBus-MS or Relay-MS cards
Software : Eaton IPM Editions Software
Dimensions D x H x W : 612.9 x 708.5 x262.4 (mm)
Weight : 28.9 (kg)
Warranty : 3Years On-Site
Eaton 9E 10KVA 1:1 and 3:1 Tower
Technical specifications
Rating (VA/W) : 10000/8000
Format : Tower
Electrical characteristics
Technology : Online double-conversion
Input Voltage Range : 176-276V without derating (up to 110-276V with derating)
Frequency Range : 45-66 Hz
Short Circuit Current : 137 A
Output voltage : 220V/230V/240V ±2 %
Output THDU : <3%
Communication
Communication ports : 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
Communication slot : 1 slot for Network-MS, ModBus-MS or Relay-MS cards
Software : Intelligent Power Software
Dimensions (H x W x D, mm) : 708.5 x 262.4 x 612.9
Weight (kg) : 85.4
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Technical specifications
Rating (VA/W) : 10000/8000
Format : Tower
Electrical characteristics
Technology : Online double-conversion
Input Voltage Range : 176-276V without derating (up to 110-276V with derating)
Frequency Range : 45-66 Hz
Short Circuit Current : 137 A
Output voltage : 220V/230V/240V ±2 %
Output THDU : <3%
Communication
Communication ports : 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
Communication slot : 1 slot for Network-MS, ModBus-MS or Relay-MS cards
Software : Intelligent Power Software
Dimensions (H x W x D, mm) : 708.5 x 262.4 x 612.9
Weight (kg) : 85.4
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Eaton 9PX 6000i RT6U 3:1 withRack kit and Network card
Technical specifications
Rating (VA/W) : 6000VA/5400W
Electrical characteristics
Technology : On-line double-conversion with Power Factor Correction (PFC) system
Nominal voltage : 380/400/415 3:1
Input Voltage Range : 305V-480V without derating (up to 175V-480V with derating) 3:1
Output voltage/THDU : 200/208/220/230/240V +/– 1%; THDU <2%
Input frequency range/THDI : 40-70Hz, 50/60Hz autoselection, frequency converter as standard, THDI < 5%
Efficiency : Up to 94% in Online mode, 98% in Hi-Efficiency mode
Connections
Input : Terminal block (up to 16mm)
Outputs : Terminal block
Outputs with HotSwap Maintenance Bypass : Terminal block + 4 IEC C19 (16A)
Communication
Communication ports : 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
4 dry contacts (DB9), 1 mini terminal block for remote On/ Off and 1 for remote power Off
1 DB15 for parallel operation
Communication slot : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Dimensions (H x W x D, mm) : 440 x 260 x 700
Weight (kg) : 88
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Technical specifications
Rating (VA/W) : 6000VA/5400W
Electrical characteristics
Technology : On-line double-conversion with Power Factor Correction (PFC) system
Nominal voltage : 380/400/415 3:1
Input Voltage Range : 305V-480V without derating (up to 175V-480V with derating) 3:1
Output voltage/THDU : 200/208/220/230/240V +/– 1%; THDU <2%
Input frequency range/THDI : 40-70Hz, 50/60Hz autoselection, frequency converter as standard, THDI < 5%
Efficiency : Up to 94% in Online mode, 98% in Hi-Efficiency mode
Connections
Input : Terminal block (up to 16mm)
Outputs : Terminal block
Outputs with HotSwap Maintenance Bypass : Terminal block + 4 IEC C19 (16A)
Communication
Communication ports : 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
4 dry contacts (DB9), 1 mini terminal block for remote On/ Off and 1 for remote power Off
1 DB15 for parallel operation
Communication slot : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Dimensions (H x W x D, mm) : 440 x 260 x 700
Weight (kg) : 88
Warranty : 3 Years On-Site Service by Eaton (Thailand)
Eaton DXRT10KI
Techonology : True online double conversion
Format : Tower / Rack
Rating (VA/Watts) : 10KVA/10KW
Power factor : 1
Output voltage : 208 / 220 / 230 / 240VAC (default 220VAC)
Input Voltage Range : 110VAC~275VAC
Input frequency range : 40~70Hz
Dimensions W x D x H : 443 x 570 x 87 (mm)
Weight : 14.5 Kg
Warranty : 3Years On-Site
Techonology : True online double conversion
Format : Tower / Rack
Rating (VA/Watts) : 10KVA/10KW
Power factor : 1
Output voltage : 208 / 220 / 230 / 240VAC (default 220VAC)
Input Voltage Range : 110VAC~275VAC
Input frequency range : 40~70Hz
Dimensions W x D x H : 443 x 570 x 87 (mm)
Weight : 14.5 Kg
Warranty : 3Years On-Site
Eaton 9PX 8000i RT6U 3:1 with Rack kit and Network card
Technical specifications
Rating (VA/W) : 8000VA/7200W
Electrical characteristics
Technology : On-line double-conversion with Power Factor Correction (PFC) system
Nominal voltage : 380/400/415 3:1
Input Voltage Range : 305V-480V without derating (up to 175V-480V with derating) 3:1
Output voltage/THDU : 200/208/220/230/240V +/– 1%; THDU <2%
Input frequency range/THDI : 40-70Hz, 50/60Hz autoselection, frequency converter as standard, THDI < 5%
Efficiency : Up to 95% in Online mode, 98% in Hi-Efficiency mode
Connections
Input : Terminal block (up to 16mm)
Outputs : Terminal block
Outputs with HotSwap Maintenance Bypass : Terminal block + 4 IEC C19 (16A)
Communication
Communication ports : 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
4 dry contacts (DB9), 1 mini terminal block for remote On/ Off and 1 for remote power Off
1 DB15 for parallel operation
Communication slot : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Dimensions (H x W x D, mm) : 440 x 260 x 700
Weight (kg) : 88
Warranty : 2 Years On-Site Service by Eaton (Thailand)
Technical specifications
Rating (VA/W) : 8000VA/7200W
Electrical characteristics
Technology : On-line double-conversion with Power Factor Correction (PFC) system
Nominal voltage : 380/400/415 3:1
Input Voltage Range : 305V-480V without derating (up to 175V-480V with derating) 3:1
Output voltage/THDU : 200/208/220/230/240V +/– 1%; THDU <2%
Input frequency range/THDI : 40-70Hz, 50/60Hz autoselection, frequency converter as standard, THDI < 5%
Efficiency : Up to 95% in Online mode, 98% in Hi-Efficiency mode
Connections
Input : Terminal block (up to 16mm)
Outputs : Terminal block
Outputs with HotSwap Maintenance Bypass : Terminal block + 4 IEC C19 (16A)
Communication
Communication ports : 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
4 dry contacts (DB9), 1 mini terminal block for remote On/ Off and 1 for remote power Off
1 DB15 for parallel operation
Communication slot : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Dimensions (H x W x D, mm) : 440 x 260 x 700
Weight (kg) : 88
Warranty : 2 Years On-Site Service by Eaton (Thailand)
Eaton 9PX 11000i RT6U with Rack kit
Technical specifications
Rating (VA/W) : 11000VA/10000W
Electrical characteristics
Technology : On-line double-conversion with Power Factor Correction (PFC) system
Input Voltage Range : 176-276V without derating (up to 100–276V with derating)
Input frequency range/THDI : 40-70Hz, 50/60Hz autoselection, frequency converter as standard, THDI < 5%
Efficiency : Up to 95% in Online mode, 98% in Hi-Efficiency mode
Connections
Input : Terminal block (up to 16mm)
Outputs : Terminal block
Outputs with HotSwap Maintenance Bypass : Terminal block + 4 IEC C19 (16A)
Communication
Communication ports : 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
4 dry contacts (DB9), 1 mini terminal block for remote On/ Off and 1 for remote power Off
1 DB15 for parallel operation
Communication slot : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Dimensions (H x W x D, mm) : 440 x 260 x 700
Weight (kg) : 86
Warranty : 2 Years On-Site Service by Eaton (Thailand)
Technical specifications
Rating (VA/W) : 11000VA/10000W
Electrical characteristics
Technology : On-line double-conversion with Power Factor Correction (PFC) system
Input Voltage Range : 176-276V without derating (up to 100–276V with derating)
Input frequency range/THDI : 40-70Hz, 50/60Hz autoselection, frequency converter as standard, THDI < 5%
Efficiency : Up to 95% in Online mode, 98% in Hi-Efficiency mode
Connections
Input : Terminal block (up to 16mm)
Outputs : Terminal block
Outputs with HotSwap Maintenance Bypass : Terminal block + 4 IEC C19 (16A)
Communication
Communication ports : 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
4 dry contacts (DB9), 1 mini terminal block for remote On/ Off and 1 for remote power Off
1 DB15 for parallel operation
Communication slot : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Dimensions (H x W x D, mm) : 440 x 260 x 700
Weight (kg) : 86
Warranty : 2 Years On-Site Service by Eaton (Thailand)
Eaton 9E 20KVA 1:1 and 3:1 Tower with supercharger (no battery)
Technology : Online double conversion
Format : Tower
Rating (VA/Watts) : 20kVA/16kW
Connection :
- Output Connections : Hardwired
- Output Frequency : 50/60 Hz autoselect
Input voltage : 220/230/240V
Input Voltage Range : 176-276V without derating (up to 110-276V with derating)
Input frequency range : 50/60 Hz autoselection
Output voltage/THDU : 220V/230V/240V ±2 %, THDU<3%
Communication Ports : 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
Communication slot : 1 slot for Network M2, ModBus-MS or Relay-MS cards
Software : Eaton IPM Editions Software
Dimensions D x H x W : 706 x 815.5 x 350 (mm)
Weight : 47.8 (kg)
Warranty : 3Years On-Site
Technology : Online double conversion
Format : Tower
Rating (VA/Watts) : 20kVA/16kW
Connection :
- Output Connections : Hardwired
- Output Frequency : 50/60 Hz autoselect
Input voltage : 220/230/240V
Input Voltage Range : 176-276V without derating (up to 110-276V with derating)
Input frequency range : 50/60 Hz autoselection
Output voltage/THDU : 220V/230V/240V ±2 %, THDU<3%
Communication Ports : 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
Communication slot : 1 slot for Network M2, ModBus-MS or Relay-MS cards
Software : Eaton IPM Editions Software
Dimensions D x H x W : 706 x 815.5 x 350 (mm)
Weight : 47.8 (kg)
Warranty : 3Years On-Site
Eaton 9PX 11000i RT6U 3:1 with Rack kit and Network card
Technical specifications
Rating (VA/W) : 11000VA/10000W
Electrical characteristics
Technology : On-line double-conversion with Power Factor Correction (PFC) system
Nominal voltage : 380/400/415 3:1
Input Voltage Range : 305V-480V without derating (up to 175V-480V with derating) 3:1
Output voltage/THDU : 200/208/220/230/240V +/– 1%; THDU <2%
Input frequency range/THDI : 40-70Hz, 50/60Hz autoselection, frequency converter as standard, THDI < 5%
Efficiency : Up to 95% in Online mode, 98% in Hi-Efficiency mode
Connections
Input : Terminal block (up to 16mm)
Outputs : Terminal block
Outputs with HotSwap Maintenance Bypass : Terminal block + 4 IEC C19 (16A)
Communication
Communication ports : 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
4 dry contacts (DB9), 1 mini terminal block for remote On/ Off and 1 for remote power Off
1 DB15 for parallel operation
Communication slot : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Dimensions (H x W x D, mm) : 440 x 260 x 700
Weight (kg) : 88
Warranty : 2 Years On-Site Service by Eaton (Thailand)
Technical specifications
Rating (VA/W) : 11000VA/10000W
Electrical characteristics
Technology : On-line double-conversion with Power Factor Correction (PFC) system
Nominal voltage : 380/400/415 3:1
Input Voltage Range : 305V-480V without derating (up to 175V-480V with derating) 3:1
Output voltage/THDU : 200/208/220/230/240V +/– 1%; THDU <2%
Input frequency range/THDI : 40-70Hz, 50/60Hz autoselection, frequency converter as standard, THDI < 5%
Efficiency : Up to 95% in Online mode, 98% in Hi-Efficiency mode
Connections
Input : Terminal block (up to 16mm)
Outputs : Terminal block
Outputs with HotSwap Maintenance Bypass : Terminal block + 4 IEC C19 (16A)
Communication
Communication ports : 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
4 dry contacts (DB9), 1 mini terminal block for remote On/ Off and 1 for remote power Off
1 DB15 for parallel operation
Communication slot : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Dimensions (H x W x D, mm) : 440 x 260 x 700
Weight (kg) : 88
Warranty : 2 Years On-Site Service by Eaton (Thailand)
Eaton 9E 15KVA 1:1 and 3:1 Tower
Technology : Online double conversion
Format : Tower
Rating (VA/Watts) : 15kVA/12kW
Connection :
- Output Connections : Hardwired
- Output Frequency : 50/60 Hz autoselect
Input voltage : 220/230/240V
Input Voltage Without Using Batteries : 176-276V without derating (up to 110-276V with derating)
Input frequency range : 45Hz-66Hz, 50/60Hz autoselection
Output voltage/THDU : 220V/230V/240V ±2 %, THDU<3%
Communication Ports : 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
Communication slot : 1 slot for Network M2, ModBus-MS or Relay-MS cards
Dimensions D x H x W / Weight : 706 x 815.5 x 350 (mm) / 145.3 (kg)
Warranty : 3Years On-Site
Technology : Online double conversion
Format : Tower
Rating (VA/Watts) : 15kVA/12kW
Connection :
- Output Connections : Hardwired
- Output Frequency : 50/60 Hz autoselect
Input voltage : 220/230/240V
Input Voltage Without Using Batteries : 176-276V without derating (up to 110-276V with derating)
Input frequency range : 45Hz-66Hz, 50/60Hz autoselection
Output voltage/THDU : 220V/230V/240V ±2 %, THDU<3%
Communication Ports : 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
Communication slot : 1 slot for Network M2, ModBus-MS or Relay-MS cards
Dimensions D x H x W / Weight : 706 x 815.5 x 350 (mm) / 145.3 (kg)
Warranty : 3Years On-Site
Eaton 9E 20KVA 1:1 and 3:1 Tower
Technology : Online double conversion
Format : Tower
Rating (VA/Watts) : 20kVA/16kW
Connection :
- Output Connections : Hardwired
- Output Frequency : 50/60 Hz autoselect
Input voltage : 220/230/240V
Input Voltage Without Using Batteries : 176-276V without derating (up to 110-276V with derating)
Input frequency range : 45Hz-66Hz, 50/60Hz autoselection
Output voltage/THDU : 220V/230V/240V ±2 %, THDU<3%
Communication Ports : 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
Communication slot : 1 slot for Network M2, ModBus-MS or Relay-MS cards
Software : Eaton IPM Editions Software
Dimensions D x H x W / Weight : 706 x 815.5 x 350 (mm) / 159.9 (kg)
Warranty : 3Years On-Site
Technology : Online double conversion
Format : Tower
Rating (VA/Watts) : 20kVA/16kW
Connection :
- Output Connections : Hardwired
- Output Frequency : 50/60 Hz autoselect
Input voltage : 220/230/240V
Input Voltage Without Using Batteries : 176-276V without derating (up to 110-276V with derating)
Input frequency range : 45Hz-66Hz, 50/60Hz autoselection
Output voltage/THDU : 220V/230V/240V ±2 %, THDU<3%
Communication Ports : 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
Communication slot : 1 slot for Network M2, ModBus-MS or Relay-MS cards
Software : Eaton IPM Editions Software
Dimensions D x H x W / Weight : 706 x 815.5 x 350 (mm) / 159.9 (kg)
Warranty : 3Years On-Site
