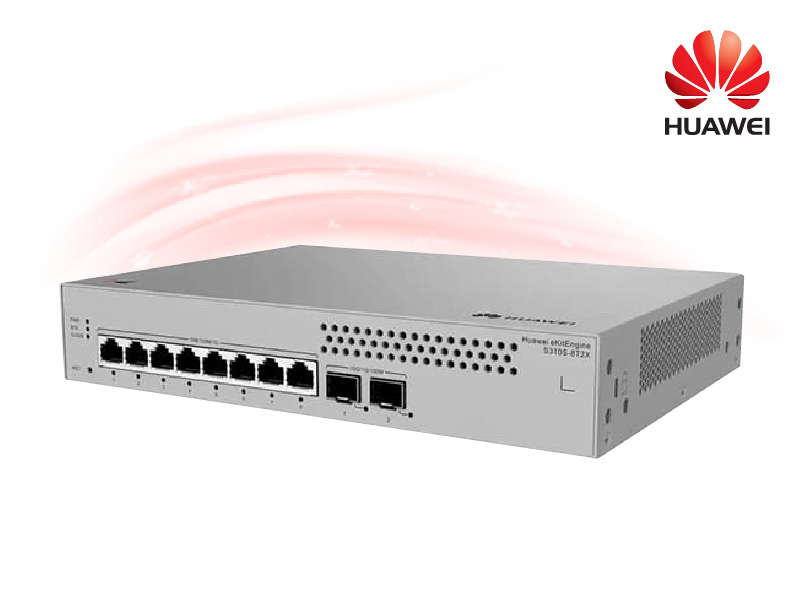

Huawei eKitEngine S310S-8T2X
8*10/100/1000BASE-T ports, 2*10GE SFP+ ports, built-in AC power
Uplink ports : 2 x 10GE SFP+ ports
Downlink ports : 8 x 10/100/1000BASE-T ports
Flash memory : NAND flash: 256 MB
Memory : DDR4: 512 MB
Input voltage range : AC input: 90V AC to 264V AC; 45Hz to 65Hz
Maximum power consumption : 10.94W
Typical power consumption : 10.31W
Dimensions : 43.6 mm x 250 mm x 180 mm
Weight : 1.34 kg

3 Year Warranty

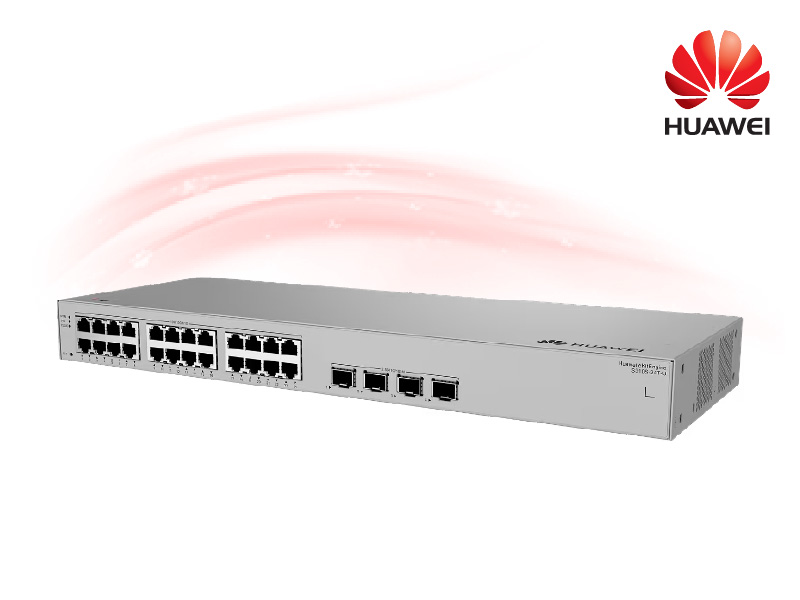

Huawei eKitEngine S310S-24T4J
24*10/100/1000BASE-T ports, 4*2.5GE SFP ports, built-in AC power, Fanless
Uplink ports : 4 x 2.5GE SFP ports
Downlink ports : 24 x 10/100/1000BASE-T ports
Flash memory : NAND flash: 256 MB
Memory : DDR4: 512 MB
Input voltage range : AC input: 90V AC to 264V AC; 45Hz to 65Hz
Maximum power consumption : 21.9 W
Typical power consumption : 21.32 W
Dimensions : 43.6 mm x 442 mm x 160 mm
Weight : 1.97 kg

3 Year Warranty

Huawei eKitEngine S310-24T4S
24*10/100/1000BASE-T ports, 4*GE SFP ports, built-in AC power
Uplink ports : 4 x GE SFP ports
Downlink ports : 24 x 10/100/1000BASE-T ports
Flash memory : Physical space: 1GB
Memory : 2GB
Console port : RJ45
Input voltage range : AC input: 90V AC to 264V AC; 45Hz to 65Hz
Maximum power consumption : 34.04W
Typical power consumption : 26.37W
Dimensions : 43.6 mm x 442.0 mm x 220.0 mm
Weight : 2.32 kg

3 Year Warranty

Huawei S220-48P4S (380W)
24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power
Uplink ports : 4 x 10GE SFP+ ports (รองรับความเร็วสูง 10Gbps)
Downlink ports : 24 x 10/100/1000BASE-T ports
Flash memory : Physical space: 1GB
Memory : 2GB
Console port : RJ45
Input voltage range : AC input: 90V AC to 264V AC; 45Hz to 65Hz
Maximum power consumption : 35.04 W
Typical power consumption : 27.27 W
Dimensions : 43.6 mm x 442.0 mm x 220.0 mm
Weight : 2.32 kg

3 Year Warranty

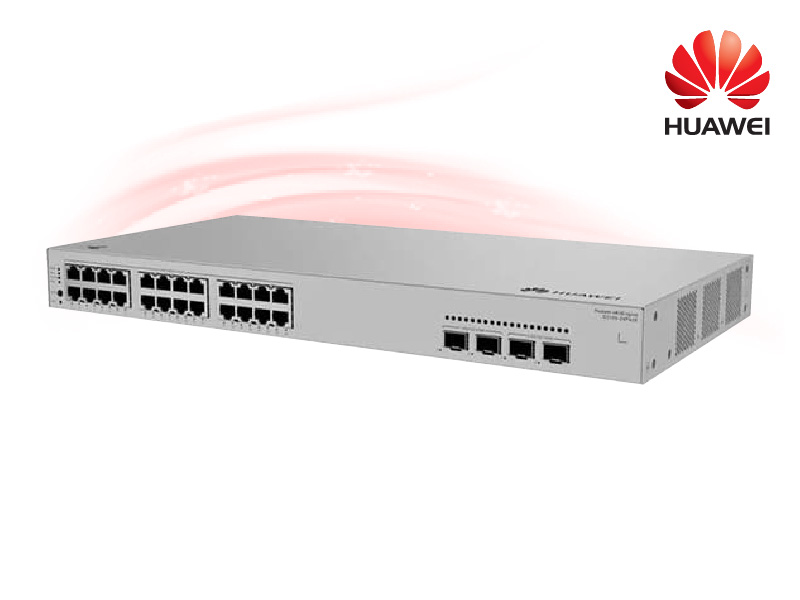

Huawei eKitEngine S310-24PN4X
24*10/100/1000/2.5GBASE-T ports(400W PoE+), 4*10GE SFP+ ports, built-in AC power
Uplink ports : 4 x 10GE SFP+ ports (รองรับความเร็วสูง 10Gbps)
Downlink ports : 24 x 10/100/1000/2.5GBASE-T ports (400 W, PoE+)
Flash memory : Physical space: 1GB
Memory : 2GB
Console port : RJ45
Input voltage range : AC input: 90V AC to 290V AC; 45Hz to 65Hz, High-voltage DC input: 190V DC to 290V DC
Maximum power consumption : Without PoE: 77.70W, Full PoE load: 517.30W (PoE: 400W)
Typical power consumption : 54.8W
Dimensions : 43.6 mm x 442.0 mm x 420.0 mm
Weight : 4.71 kg

3 Year Warranty

Huawei eKitEngine S310-24P4S
24*10/100/1000BASE-T ports (400W PoE+), 4*GE SFP ports, built-in AC power
Uplink ports : 4 x GE SFP ports
Downlink ports : 24 x 10/100/1000BASE-T ports (400 W, PoE+)
Flash memory : Physical space: 1GB
Memory : 2GB
Console port : RJ45
Input voltage range : AC input: 90V AC to 290V AC; 45Hz to 65Hz, High-voltage DC input: 190V DC to 290V DC
Maximum power consumption : Without PoE: 47.1W, Full PoE load: 491.66W (PoE: 400W)
Typical power consumption : 40.07W
Dimensions : 43.6 mm x 442.0 mm x 220.0 mm
Weight : 2.92 kg

3 Year Warranty

Huawei eKitEngine S310-48T4S
48*10/100/1000BASE-T ports, 4*GE SFP ports, built-in AC power
Uplink ports : 4 x GE SFP ports
Downlink ports : 48 x 10/100/1000BASE-T ports
Flash memory : Physical space: 1GB
Memory : 2GB
Console port : RJ45
Input voltage range : AC input: 90V AC to 264V AC; 45Hz to 65Hz
Maximum power consumption : 52.05W
Typical power consumption : 44.9W
Dimensions : 43.6 mm x 442.0 mm x 220.0 mm
Weight : 2.71 kg

3 Year Warranty

Huawei eKitEngine S310-24P4X
48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power
Flash memory : Physical space: 1GB
Memory : 2GB
Console port : RJ45
Input voltage range : AC input: 90V AC to 264V AC; 45Hz to 65Hz
Maximum power consumption : 44.3W
Typical power consumption : 36.95W
Dimensions : 43.6 mm x 442.0 mm x 220.0 mm
Weight : 2.71 kg

3 Year Warranty

Huawei eKitEngine S310-24P4X
24*10/100/1000BASE-T ports(400W PoE+), 4*10GE SFP+ ports, built-in AC power
Flash memory : Physical space: 1GB
Memory : 2GB
Console port : RJ45
Input voltage range : AC input: 90V AC to 290V AC; 45Hz to 65Hz, High-voltage DC input: 190V DC to 290V DC
Maximum power consumption : Without PoE: 44.35W, Full PoE load: 485.91W (PoE: 400 W)
Typical power consumption : 37.12 W
Dimensions : 43.6 mm x 442.0 mm x 220.0 mm
Weight : 2.92 kg

3 Year Warranty

Huawei eKitEngine S310-48P4S
48*10/100/1000BASE-T ports(380W PoE+), 4*GE SFP ports, built-in AC power
Uplink ports : 4 x GE SFP ports
Downlink ports : 48 x 10/100/1000BASE-T ports (380 W, PoE+)
Flash memory : Physical space: 1GB
Memory : 2GB
Console port : RJ45
Input voltage range : AC input: 90V AC to 290V AC; 45Hz to 65Hz, High-voltage DC input: 190V DC to 290V DC
Maximum power consumption : Without PoE: 63.7W, Full PoE load: 462.80W (PoE: 380W)
Typical power consumption : 48.64W
Dimensions : 43.6 mm x 442.0 mm x 220.0 mm
Weight : 3.24 kg

3 Year Warranty

Huawei eKitEngine S310-48P4X
48*10/100/1000BASE-T ports(380W PoE+), 4*10GE SFP+ ports, built-in AC power
Uplink ports : 4 x 10GE SFP+ ports (รองรับความเร็วสูง 10Gbps)
Downlink ports : 48 x 10/100/1000BASE-T ports (380 W, PoE+)
Flash memory : Physical space: 1GB
Memory : 2GB
Console port : RJ45
Input voltage range : AC input: 90V AC to 290V AC; 45Hz to 65Hz, High-voltage DC input: 190V DC to 290V DC
Maximum power consumption : Without PoE: 64.7W, Full PoE load: 462.80W (PoE: 380W)
Typical power consumption : 49.44 W
Dimensions : 43.6 mm x 442.0 mm x 220.0 mm
Weight : 3.24 kg

3 Year Warranty
